    Local MSM Seeing The Light: "Hey! It's Takes Energy And Stuff To Make Solar Panels!"


    By Theblogprof, Section News
    Posted on Thu Jun 11, 2009 at 10:50:42 PM EST
    Tags: energy, solar power (all tags)

    (Promoted by Nick...)

    Cross-posted at theblogprof

    Well, well, well... I've written far too much on solar power throughout this blog and why it is not economically viable here in Michigan. I have also mentioned several times that it is not good for the environment either. Solar panels have to be manufactured with some durable light-weight materials that also had to be manufactured. Then there's the energy involved in manufacturing, construction, and installation. All of that has created a certain amount of pollution. Same thing is true with wind turbines. And hydoelectric power generation (in addition to the CO2 that is continually put out into the atmosphere from the gigantic reservoir that has absorbed a lot of biomatter). And every technology. Anyway, The Bay City Times has had (finally) an epiphany:

    Making solar panels requires old-fashioned coal-fired power.

    Michigan's solar industry has a dirty secret: It needs a lot of coal-fired power.
    The process of manufacturing base materials and panels to capture electricity from the sun is energy-intensive, utility officials say.

    And that energy comes mostly from fossil fuels in Michigan, where up to eight new coal-fired power plants are on the drawing board.

    That includes a $2 billion-plus, 800-megawatt plant proposed by Consumers Energy in Bay County's Hampton Township.

    Hemlock Semiconductor Corp. in Saginaw County, a major world manufacturer of solar base materials, is Consumers' largest single electricity user.

    But solar panels pay back the energy used to produce them in just a few years, says Vasilis M. Fthenakis in New York, head of the National Photovoltaic Environmental Research Center at Brookhaven National Laboratory and director of the Center for Life Cycle Analysis at Columbia University.

    "It's about a year to 2.5 years, depending on the technology and where the photovoltaics are placed," said Fthenakis, who co-authored a study funded by the European Commission and U.S. Department of Energy on the environmental footprint of solar energy.

    Solar panels have a life expectancy of about 30 years, he said.

    But making sun power is not pollution-free.

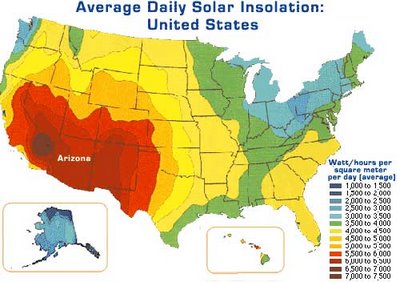

    Shocking, no? Pie-in-the-sky crashing to Earth and making a gigantic (and possibly delicious) mess. Actually, I disagree with stated number of 2.5 years, albeit I have not read through the study. The 2.5 years may be the the point where the energy generated by the solar technology surpassed the energy required, but that number certainly won't be true in Michigan. Why? Here's why: this is a solar map of the U.S.:

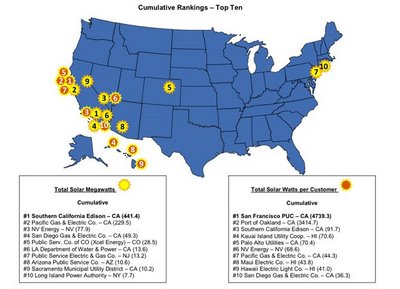

    Guess where large-scale solar plants are going? From Wired Science:You might as well ignore the two one in New Jersey and the one in New York as they are more publicity stunt than anything else. Now overlay the maps and you get a good sense of why solar will simply not work in Michigan. It won't be 2.5 years. I'd estimate 10. Now you may say that that is still good considering that the panels last 30 years, but there is deception in this as well.

    You see, when the calculation was made of energy generated versus energy used, the total well-to-use analysis was missing. For example, let's say that it takes 1000 kW-hr of energy to produce the solar panel and related materials that are required for construction. That 1000 kW-hrs was generated by plants on the grid. What is not taken into account is that those coal power plants are about 33% efficient, which means 3000 kW-hr of coal was burned to generate that 1000 kW-hrs of electrical energy. So triple the number. We're now at a 30-year payback period on just the energy. But even that is not all. That coal had to be mined and transported, and that took energy too. Plus the solar panels had to be transported and installed. That took energy too. Without specifics, the payback period here in Michigan would be closer to 50 years!

    That is just the energy side. The analysis apparently doesn't take into account the chemical waste from the process of constructing solar panels or the raw material necessary. Some of the gases in particular are 10,000 times more potent than CO2 as a greenhouse gas. If you want to calculate the carbon footprint, or environmental footprint, of solar technology, it really does not look good.

    If you compare technologies for generating electrical power, a fair basis would be to look at the ration of waste generated per unit energy generated over the entire life-cycle of the technology. Any guesses on which technology wins  - and I mean by a lot? Not solar. Not wind. Not hydro. Still thinking? I'll give you a hint - it's the other "n" word. That's right - nuclear. The cleanest energy we have ever had.

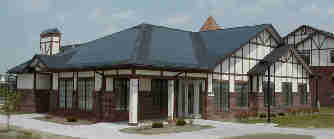

    By the way, all of the above is engineering, not economics. I can say a few things on the economics as well, and by example to boot. At Oakland University, we installed solar shingles made by UniSolar of Auburn Hills. The 10kW installation, about the size you want for an average home, was installed on the student apartment clubhouse. Here's a pic where you can clearly see the shingles:The shingles each have two leads that have to be wired all together. The DC power then goes through a couple of inverters and integrates into the buildings power grid. During summer months when excess electricity is produces, it goes right back into the campus grid. So how much did the installation cost? About $130,000, most of that coming from demonstration grants. (that's just for the shingles, inverter and grid tie-in, nothing else) At the payback rate, this installation might pay for itself after I retire from teaching altogether (I'm still in my 30s). That's if they last that long. So therein lies the problem with photovoltaics - economic feasibility. Should such an array come down in price to about $1 per Watt of installed generation capacity (it's about $10 currently), I will buy these shingles myself. Until then, I'll stick with DTE..

    < Et Tu Wayne County? | Friday in the Sphere: June 12 >


    Share This: Digg! StumbleUpon del.icio.us reddit reddit


    Display: Sort:
    Well done! (none / 0) (#1)
    by kenmatesevac on Thu Jun 11, 2009 at 11:29:03 PM EST
    Math- and science-oriented types like myself (and blogprof) appreciate this kind of analysis, and I appreciate the efforts put into writing this.

    The simple fact that some of our liberal countrymen claim something does not automatically make it true.  Both the engineering and the economic aspects have to be considered.

    Let the free market work its work.

    Damn it Jim! I'm an engineer, not an English major (none / 0) (#4)
    by Theblogprof on Fri Jun 12, 2009 at 08:48:44 AM EST
    Actually, I should re-read everything. Spell check doeasn't check titles. Apparently, neither do I. I shouldn't write when I'm sleepy either. Groan...

    I don't know about "model"... (none / 0) (#7)
    by Theblogprof on Fri Jun 12, 2009 at 05:31:16 PM EST
    I have no knowledge of their reactor design, but we have a good model right here in Newport, MI - the Fermi 2 facility. I'm doing a faculty fellowship there this summer and it's wonderful over there. We need to build many more!

    The total waste generated over 20 years of putting out 1.1 GW of electricity fits in a swimming pool! Absolutely incredible.

    Excellent post! (none / 0) (#8)
    by woosters on Fri Jun 12, 2009 at 06:02:20 PM EST
    So tired of Liberals making generalizations that only they are the party of Science and they are the only party that cares about the environment. Just because they have the media in their pocket and their scientific theories get more coverage, it does not mean that their theories are correct nor prudent. Love seeing scientific reasoning showing the fallacy of their claims.
